FPT university (Hoist Foundation)
Project type
School
Status
Complete in 2022
Location
Ngu Hanh Son District, Da Nang city, Viet Nam
Role
Structural Design

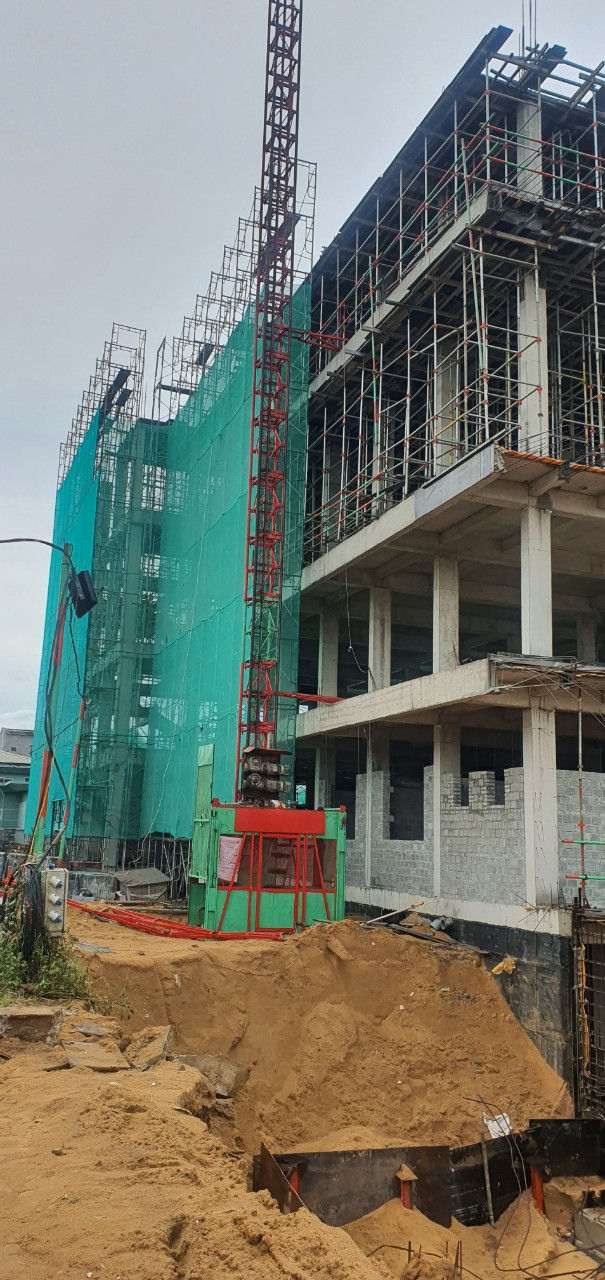

Introducing the recent project, FPT UNIVERSITY, which focuses on the construction of hoist foundations. The project utilizes SUMO brand hoists, a 3-motor drive system, and a hoist height of 21.1m, including 14 frame segments. The hoists used are of single cage type SM200/200, with dimensions of 3.2x1.5x2.2m and a rated load of 2000kg per cage. The standard burning size for the project is 650x650x1508mm.
Use reinforced concrete foundation with dimensions of 4x6m, foundation thickness of 0.3m. The foundation surface is located at an altitude of -0.7m compared to the project's elevation of ± 0.00m. The soil layer at the bottom of the foundation is treated with the following measures: Reinforced with a 200mm thick layer of 2x4 stone, compacting the foundation with K ≥ 0.95, pouring Concrete Lining
